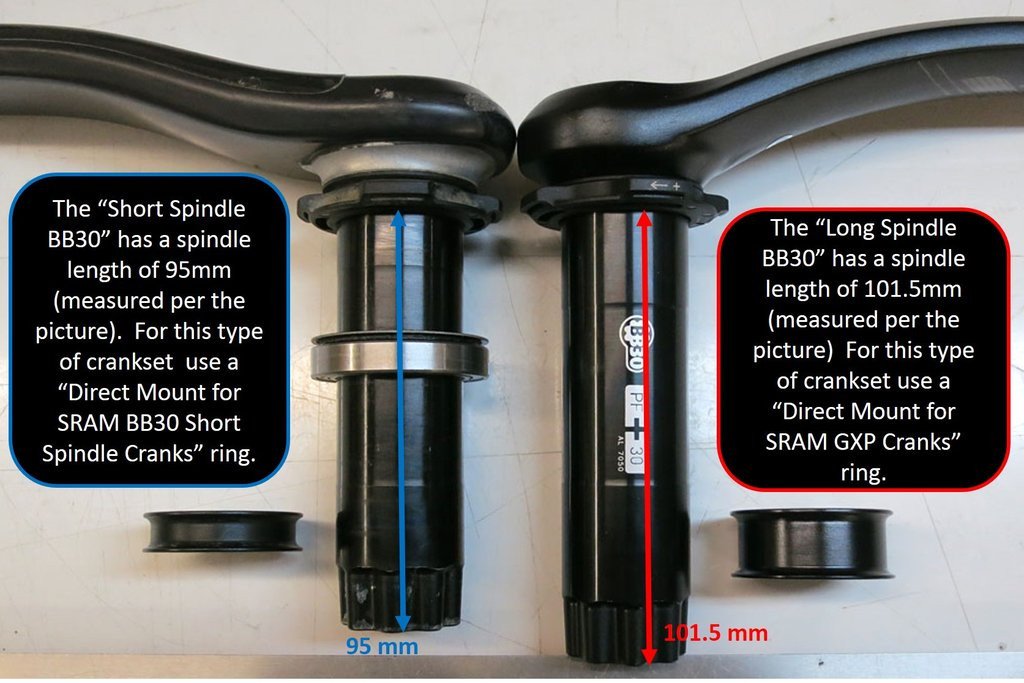

Wolf Tooth's CAMO stands for Chainline and Material Optimization. Available in various chainlines and spider configurations, CAMO spiders allow the use of previously unavailable chainring styles, materials, and chainlines in a lightweight, modular, and customizable package. These spiders are for use with the SRAM cranksets that have removable Direct Mount spiders and are only compatible with CAMO rings and bolts. Four different chainline options are available. The number and letter refer to the mm offset and direction from the mounting face to the centerline of the teeth: - M8 (minus 8mm - dished toward the frame): For 49mm chainline, used with GXP and long-spindle BB30 cranks. Designed for bikes with 135mm QR, 142mm thru axle, and some 148mm bikes. - M5 (minus 5mm - dished toward the frame): For 52mm chainline (Boost) - M2 (minus 2mm - dished toward the frame): For 49mm chainline on short-spindle BB30 cranks - P2 (plus 2mm - dished outward away from the frame): For fat bikes that have 190/197 rear spacing but use a 100mm-spindle crank. Can also be used to achieve a Boost chainline with a short-spindle BB30 crank.
|M5 Boost for 53mm chainline||812719023399||SP-CAMO-SDM-M5||210000009484|
|M8 Standard for 49mm chainline||812719023368||SP-CAMO-SDM-M8||210000009795|
